High PHigh Precision Micro Scale Filling Ceramic Metering Pump Kits
filling machine spare partsrecision Micro Scale Filling Ceramic Metering Pump Kits Filling
Machine Spare Parts
Characteristic

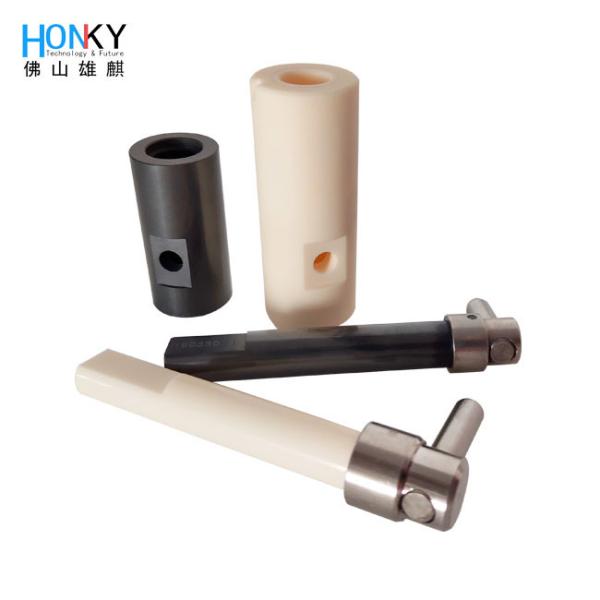

Ceramic pump kit
Customizable as required
Common sizes:80ul, 140ul, 40ul, 700ul, 1.5ml, 2.9ml, 6ml, 12ml,
25ml
Material:Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2),
silicon carbide(SiC), etc.
Metal part: 316L stainless steel
Application
Suitable for ceramic pump manufacturing and upgrading.
Technical data
| Item No. | -03 | -06 | -09 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon
carbide(SiC), etc. |
| Metal part: 316L stainless steel |
| Filling range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore diameter | φ4 | φ5 | φ7 | φ10 | φ13 | φ15 | φ22 | φ25 | φ36 |
Product display
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience,
many of them have been engaging in this precision filling industry
for many years.
Quality Assurance
With a strict and effective quality control system, our products
are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling
machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is
ready to assist when you need technical support.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support.
Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime
after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine
purchases. We will provide the user manual and videos to support
installing, debugging, operation of the machine, which will
indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
